R8 R-SERIES NUT BANKOUT


R8 cropped.jpg


The COE R8 BANKOUT is used to support harvester equipment in the field by unloading and then transferring product to trailers by use of an elevator. Its sleek profile allows it to move easily in tight orchard plantings. Equipped standard with air conditioned cab, auto shift & VARIOSTEER makes for productive operation.

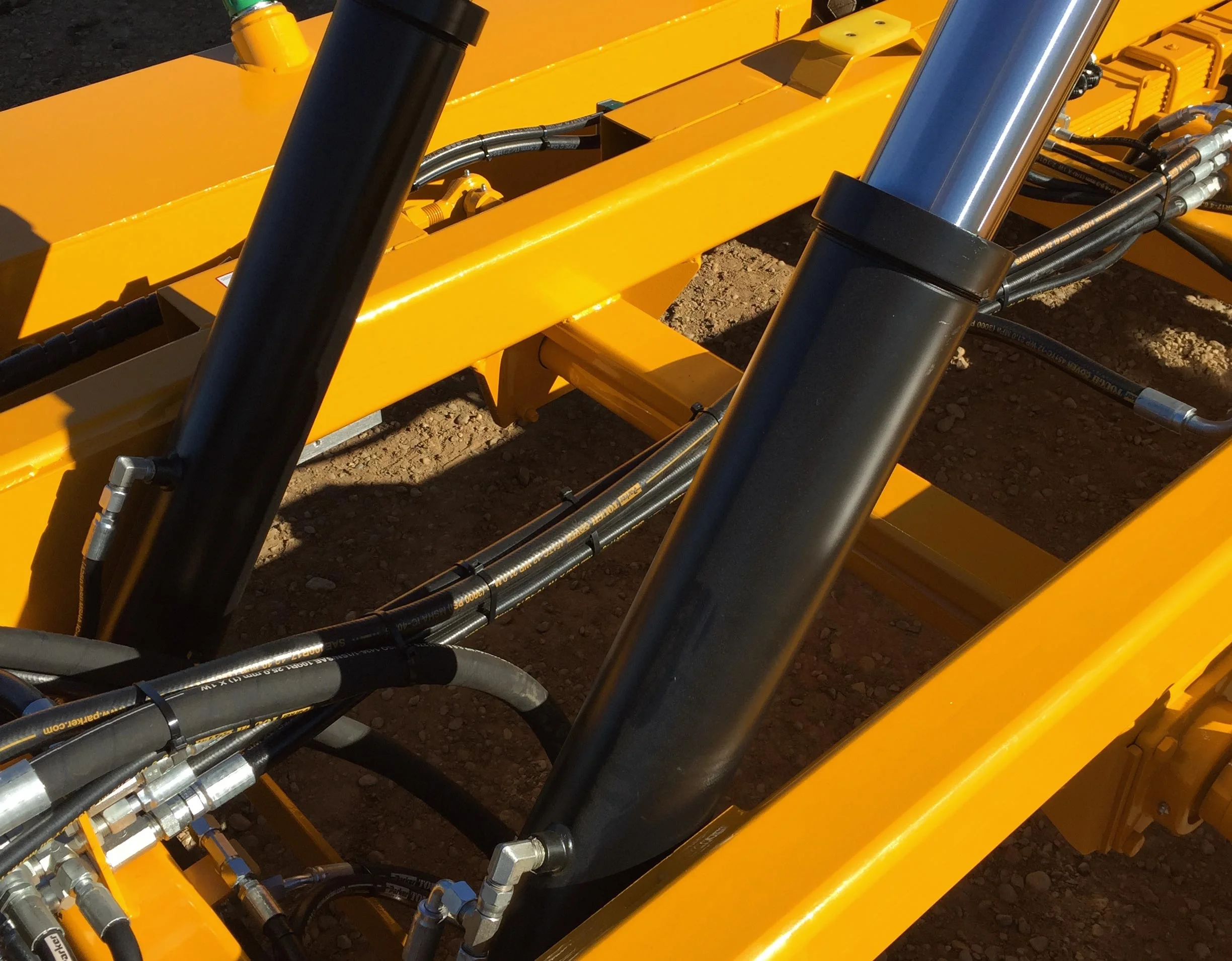

Heavy Duty Telescopic Cylinders


VARIOSTEER Selector


Surround View Cameras

SPECIFICATIONS & FEATURES

  • John Deere 4045 74HP TIER 4 final engine

  • POWERMAX system

  • VARIOSTEER selectable steering with automatic rear wheel centering

  • INCONTROL display with adjustments & surround view cameras

  • High debris radiator & oil cooler

  • Rexroth hydrostatic pump & variable motors

  • Auburn Gear planetary 19-1 hubs with automatic shifting 4WD

  • Parking brake (fail safe design)

  • COE 33/16.5 x 16.5 12 ply tires

  • Dual dry element air cleaner w/ pre cleaner

  • LED lights package

  • Safety flashers

  • 6 leaf spring suspension

  • Heavy duty wheel motor axles

  • Low profile tank 450 cu ft capacity

  • High capacity augers

  • COE welded cylinders

  • Heavy duty 3 stage telescopic cylinders

  • Air conditioned cab with filtered pressurizer

  • Single joystick control with multifunction features

  • Automotive type ground drive

  • Seat with adjustable suspension

  • Heavy duty construction

  • High capacity fuel reservoir

  • Powder coated finish

OPTIONS

  • Traction valve for ground drive

  • Telescopic front arm (attached to elevator)

  • Tier 3 engines (available for exports to emissions compliant areas)
