M7 R-SERIES MONO BOOM SHAKER

THE SHAKER REVOLUTIONIZED


The COE M7 MONO BOOM SHAKER is used to harvest Walnuts, Almonds and Pecans. The Mono Boom can limb and trunk shake at a higher point on larger trees for more efficient removal.

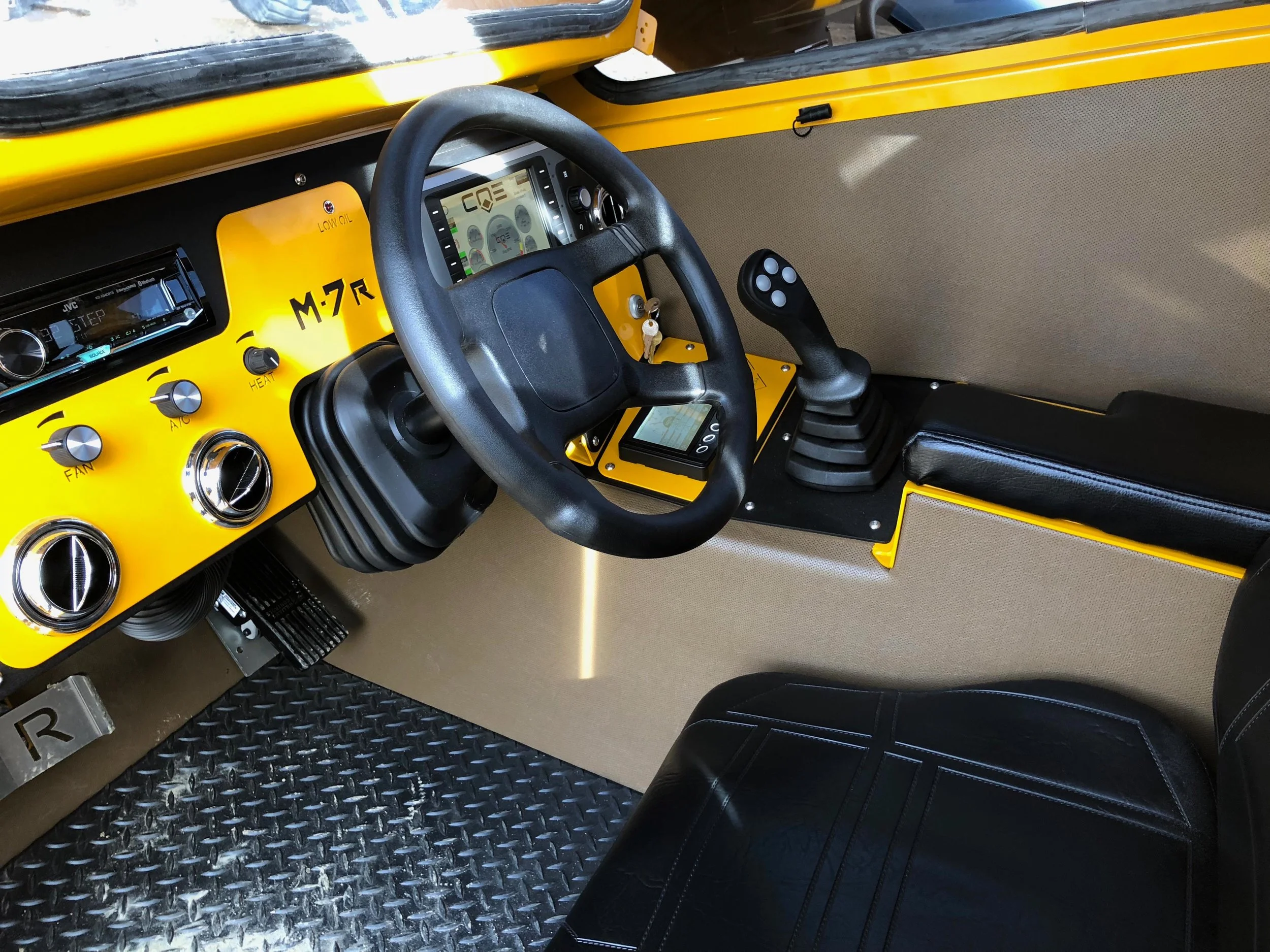

Spacious Ergonomic Cab


Swing-out Radiators


Easy Access to Components

SPECIFICATIONS & FEATURES

  • John Deere 4045 74hp Tier 4 final engine
  • Variable electric reversible cooling fans
  • High debris radiator, oil cooler & AC condenser with swing out feature
  • DUALFORCE shake & ground drive system
  • POWERMAX operating system
  • TRUECLAMP with unclamp lockout safety
  • INCONTROL touch screen with adjustments & rear view camera
  • Air conditioned & heated cabin with stereo
  • Tilt steering column & suspension seat
  • Single joystick control
  • Rexroth hydrostatic pump & variable motors
  • Auburn Gear planetary 22-1 hubs 2WD with auto-shifting
  • Proportional travel clamp sensor
  • Fail safe parking brake
  • COE 33/16.5 x 16.5 12-ply tires
  • Dual dry element air cleaner w/ pre cleaner
  • LED light bars (Front, rear & head)
  • Safety flasher lights
  • TH-7X shaker head with 110CC VOAC, center swing weights, grease serviceable energy wheel & sling lubrication system
  • Sleek & angled exterior design
  • Automatic sweepers with auto lift (forward & reverse)
  • Powder coated finish

OPTIONS

  • DOOSAN 3.5 110HP T4 final engine
  • Shake patterns (HD MD LD)
  • Brush or Finger style sweepers
  • 30” clamp opening
  • COE ESHAKE programable shake with automation features
  • Long boom
  • Pecan shielding
  • Tier 2 & 3 engines (for export orders)
  • TRAX continuous rubber track drive
