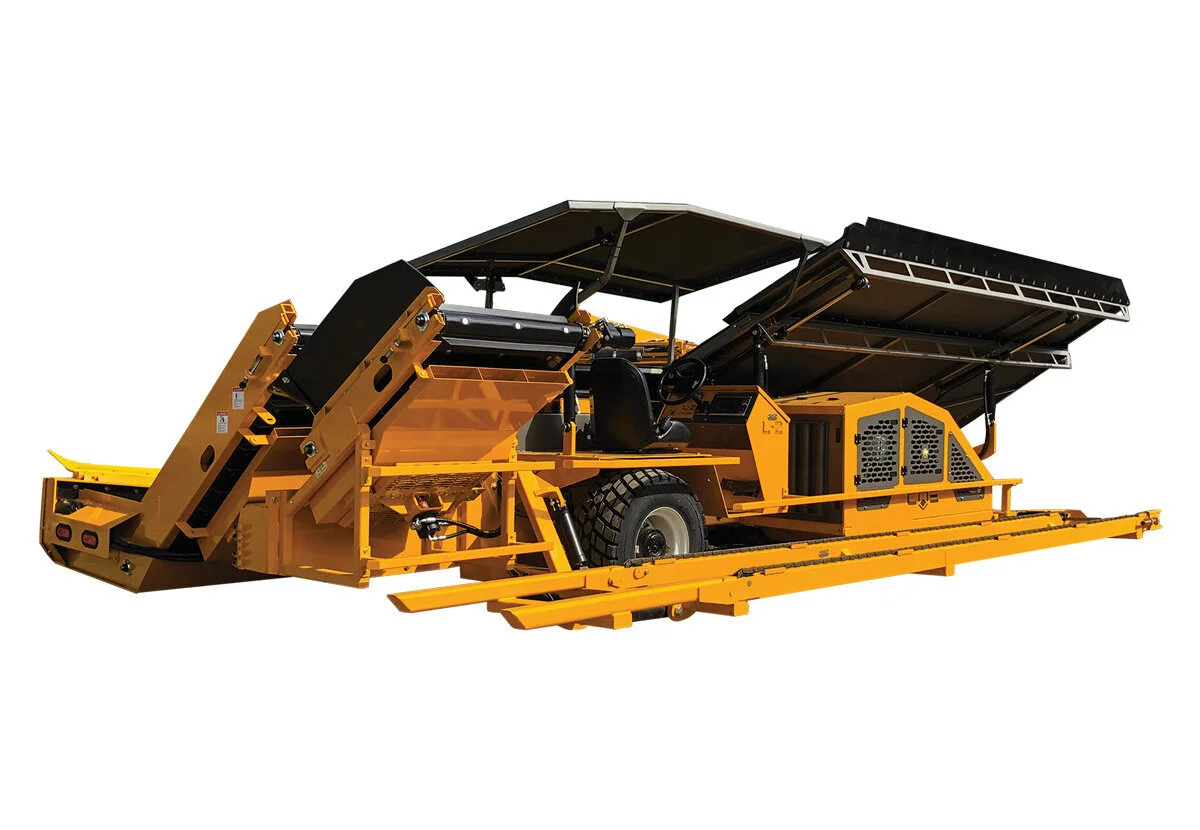

L2 R-SERIES MK2 CATCHING FRAME RECEIVER

The Receiver Refined


The COE L2 is available in 90 or 45 degree elevator configurations and pairs with the COE C7 SHAKER side to form a catching frame set. A variety of options for bin or bulk handling is available to suit any crop.



De-Sticker Trash Cleaning System


TRAX Continuous Track Drive

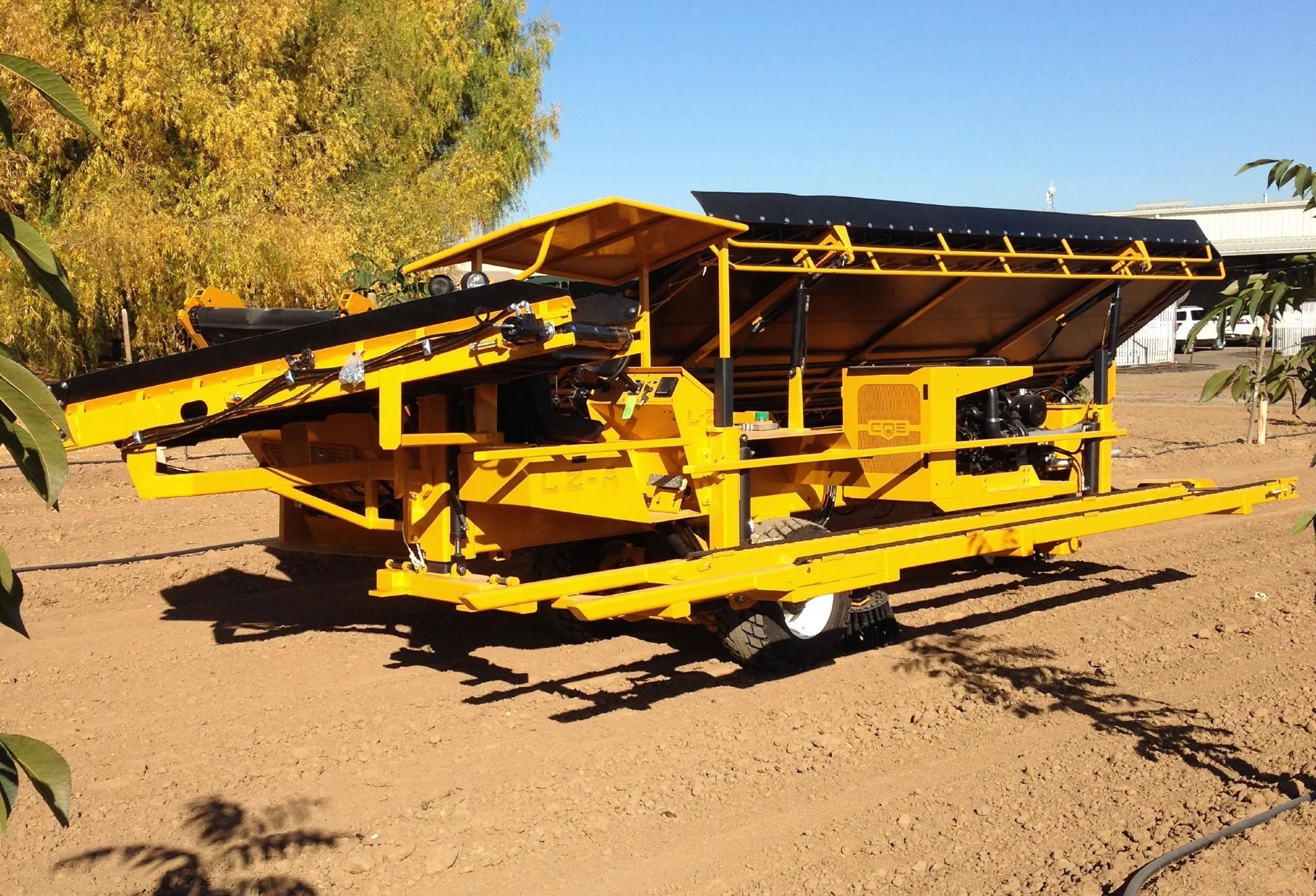

AXIOM Hydraulic Lift

SPECIFICATIONS & FEATURES

  • John Deere 4045 74hp Tier 4 final engine
  • Variable electric reversible cooling fans
  • High debris radiator & oil cooler
  • POWERMAX operating system
  • INCONTROL touch screen with adjustments
  • Single joystick control with multifunctions
  • Rear Steering with auto centering
  • Rexroth hydrostatic pump & variable motors
  • Auburn Gear planetary 19-1 hubs 3WD with auto-shifting
  • Urethane flipper
  • Parking brake (fail safe design)
  • COE 33/16.5 x 16.5 12-ply tires
  • Dual dry element air cleaner w/ pre-cleaner
  • LED light bars (Front, rear & side)
  • Safety flasher lights
  • Bin shuttle, Tilt + Rolls forks or Bulk adapter
  • 24” main, 36” elevator 90 degree or 30” elevator 45 degree
  • Proportional adjustable blower & conveyors
  • Trash blower with floating bracket & double bearing spindle
  • Arm rest with storage compartment
  • Powder coated finish

OPTIONS

  • 90 degree or 45 degree configuration
  • Air conditioned & heated cab
  • AXIOM hydraulic lift
  • Remote monitoring & tracking system
  • Automatic sweepers with hydraulic lift
  • DE-STICKER stick & trash cleaning system
  • Flanged conveyors in white (cherries)
  • Traction valve
  • TRAX continuous rubber track drive
  • Sizer / Trash chains
  • Soft padding
