C7 R-SERIES MK2 CATCHING FRAME SHAKER

THE SHAKER REVOLUTIONIZED


The COE C7 SHAKER pairs with a COE L2 RECEIVER to form a catching frame set that can harvest fruit, nut, olives and other various crops. Its versatile deck design allows it to work in multiple tree spacing’s efficiently.

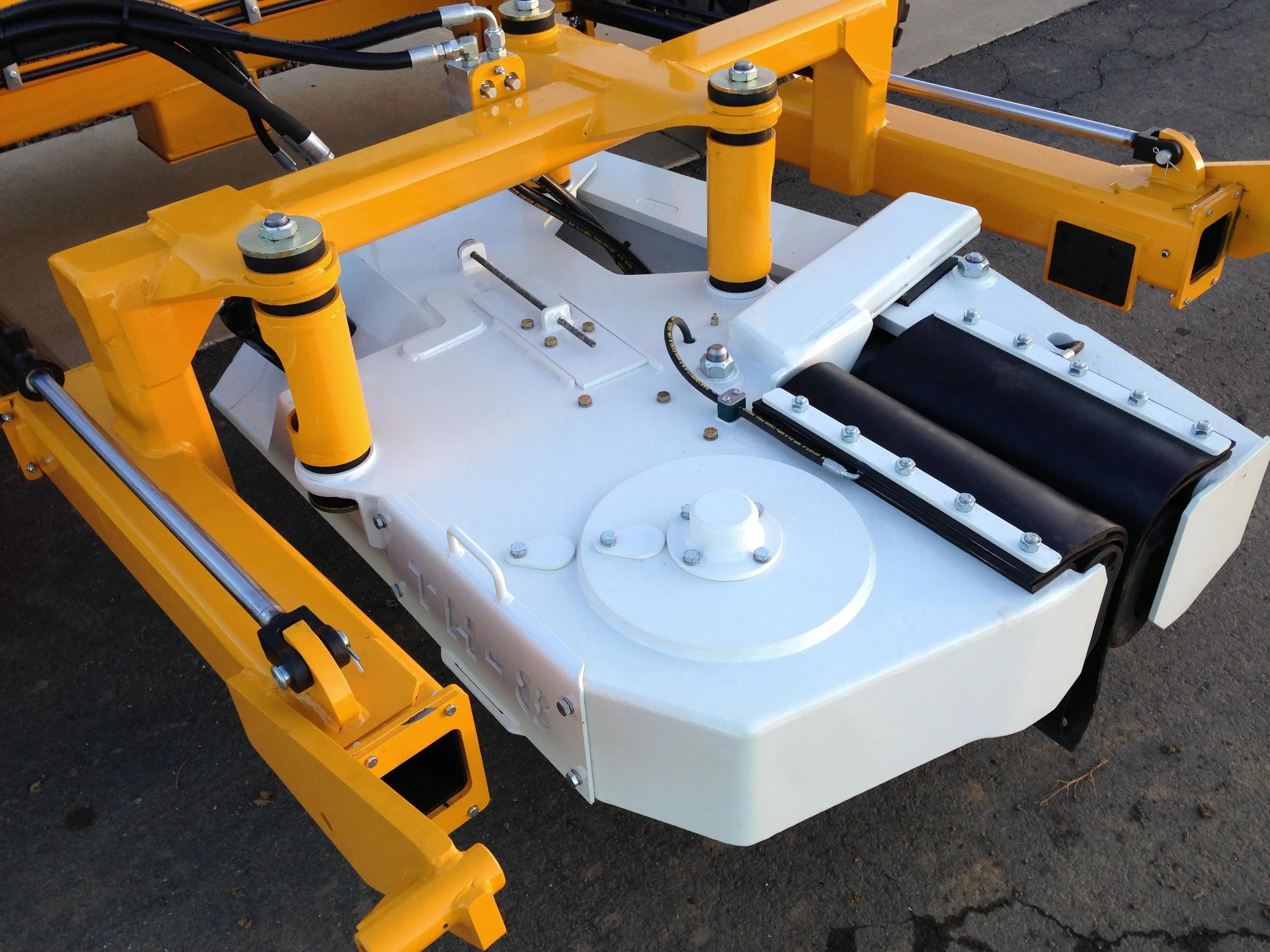

TH-8 Shaker Head


TRAX Continuous Track Drive


AXIOM Hydraulic Lift

SPECIFICATIONS & FEATURES

  • John Deere 4045 74hp Tier 4 final engine
  • Variable electric reversible cooling fans
  • High debris radiator & oil cooler
  • DUALFORCE shake & ground drive system
  • POWERMAX operating system
  • TRUECLAMP with unclamp lockout safety
  • INCONTROL touch screen with adjustments
  • Single joystick control with multifunctions
  • Rexroth hydrostatic pump & variable motors
  • Auburn Gear planetary 19-1 hubs 3WD with auto-shifting
  • Proportional clamp & carriage in-out sensor
  • Automatic deflector clean off feature
  • Parking brake (fail safe design)
  • COE 33/16.5 x 16.5 12-ply tires
  • Dual dry element air cleaner w/ pre-cleaner
  • LED light bars (Front, rear & head)
  • Safety flasher lights
  • TH-8 shaker head with 110CC VOAC, center swing weights, grease serviceable energy wheel & sling lubrication system
  • 24’ flanged deflector with 4’ cut outs
  • PVC Top & Mid deck, Canvas lower deck
  • Arm rest with storage compartment
  • Powder coated finish


OPTIONS

  • Shake patterns (HD MD LD)
  • Air conditioned & heated cab
  • Remote monitoring & tracking system
  • Automatic sweepers with hydraulic lift
  • TH-8X shaker head
  • COE ESHAKE programable shake
  • AXIOM hydraulic lift
  • Traction valve
  • TRAX continuous rubber track drive
  • 27’ or 30’ deflector
  • 6’ cut outs with 2’ sub divides
  • Soft padding
